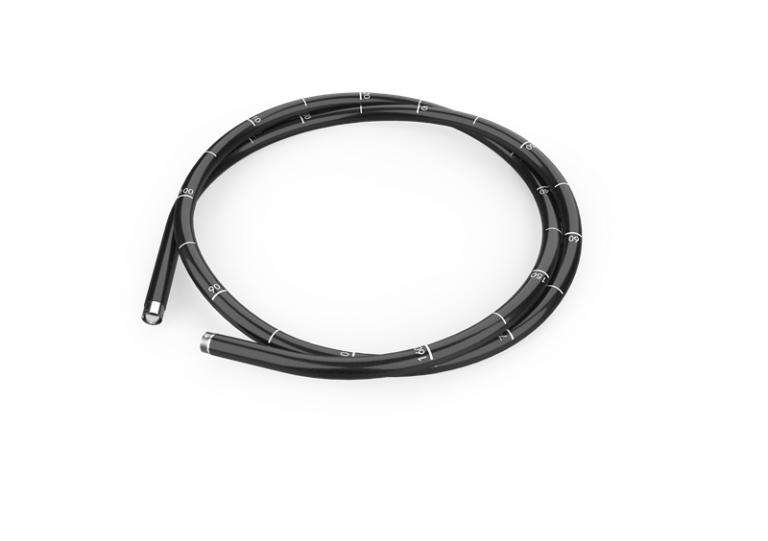

We design and develop the insertion tube with end-fitting for different series of Fuji endoscope, Pentax endoscope and SonoScape endoscope.
You can choose with fitness or without fitness. All of diameter and length of Insertion tubes and customized sizes are available including special size for veterinary use.
If you need the acid resistance insertion tube, just tell us.
| Common Insertion Tube specification for Olympus endoscope | |||||||||||||||
| Name | Model No | Specification（mm) | |||||||||||||
| Insertion Tube | TM-FSA-OLY01 | OD:Φ9.2×ID:Φ7.5×L:1030 | |||||||||||||
| Insertion Tube | TM-FSA-OLY02 | OD:Φ8.6×ID:Φ6.9×L:1030 | |||||||||||||
| Insertion Tube | TM-FSA-OLY03 | OD:Φ9.8×ID:Φ8.1×L:1030 | |||||||||||||
| Insertion Tube | TM-FSA-OLY04 | OD:Φ8.0×ID:Φ6.3×L:1030 | |||||||||||||
| Insertion Tube | TM-FSA-OLY05 | OD:Φ8.8×ID:Φ7.1×L:1030 | |||||||||||||
| Insertion Tube | TM-FSA-OLY06 | OD:Φ9.9×ID:Φ8.2×L:1030 | |||||||||||||
| Insertion Tube | TM-FSA-OLY07 | OD:Φ10.0×ID:Φ8.3×L:1030 | |||||||||||||
| Insertion Tube | TM-FSA-OLY08 | OD:Φ6.0×ID:Φ5.1×L:1030 | |||||||||||||
| Insertion Tube | TM-FSA-OLY09 | OD:Φ10.2×ID:Φ8.3×L:1030 | |||||||||||||
| Insertion Tube | TM-FSA-OLY10 | OD:Φ9.5×ID:Φ7.8×L:1050 | |||||||||||||
| Insertion Tube | TM-FSA-OLY11 | OD:Φ9.6×ID:Φ7.9×L:1030 | |||||||||||||
| Insertion Tube | TM-FSA-OLY12 | OD:Φ9.0×ID:Φ7.3×L:1030 | |||||||||||||
| Insertion Tube | TM-FSA-OLY13 | OD:Φ9.4×ID:Φ7.7×L:1030 | |||||||||||||
| Insertion Tube | TM-FSA-OLY14 | OD:Φ11.5×ID:Φ9.2×L:1240 | |||||||||||||
| Insertion Tube | TM-FSA-OLY15 | OD:Φ11.75×ID:Φ9.4×L:1240 | |||||||||||||
| Insertion Tube | TM-FSA-OLY16 | OD:Φ9.2×ID:Φ7.5×L:1050 | |||||||||||||
| Insertion Tube | TM-FSA-OLY17 | OD:Φ9.5×ID:Φ7.8×L:1030 | |||||||||||||
| Insertion Tube | TM-FSA-OLY18 | OD:Φ9.8×ID:Φ8.1×L:1050 | |||||||||||||
| Insertion Tube | TM-FSA-OLY19 | OD:Φ6.0×ID:Φ5.1×L:1100 | |||||||||||||
| Insertion Tube | TM-FSA-OLY20 | OD:Φ5.0×ID:Φ4.0×L:1100 | |||||||||||||
| Insertion Tube | TM-FSA-OLY21 | OD:Φ9.0×ID:Φ7.3×L:1050 | |||||||||||||
| Insertion Tube | TM-FSA-OLY22 | OD:Φ8.8×ID:Φ7.1×L:1030 | |||||||||||||
| Insertion Tube | TM-FSA-OLY23 | OD:Φ10.5×ID:Φ8.5×L:1030 | |||||||||||||
| Insertion Tube | TM-FSA-OLY24 | OD:Φ12.5×ID:Φ10.1×L:1240 | |||||||||||||
| Insertion Tube | TM-FSA-OLY25 | OD:Φ12.5×ID:Φ10.1×L:1680 | |||||||||||||
| Insertion Tube | TM-FSA-OLY26 | OD:Φ11.8×ID:Φ9.4×L:1680 | |||||||||||||
| Insertion Tube | TM-FSA-OLY27 | OD:Φ11.3×ID:Φ9.1×L:1240 | |||||||||||||
| Insertion Tube | TM-FSA-OLY28 | OD:Φ12.0×ID:Φ9.6×L:1680 | |||||||||||||
| Insertion Tube | TM-FSA-OLY29 | OD:Φ11.6×ID:Φ9.2×L:1680 | |||||||||||||
| Insertion Tube | TM-FSA-OLY30 | OD:Φ11.0×ID:Φ8.7×L:1680 | |||||||||||||
| Insertion Tube | TM-FSA-OLY31 | OD:Φ12.8×ID:Φ10.4×L:1240 | |||||||||||||
| Insertion Tube | TM-FSA-OLY32 | OD:Φ12.8×ID:Φ10.4×L:1680 | |||||||||||||
| Insertion Tube | TM-FSA-OLY33 | OD:Φ12.9×ID:Φ10.5×L:1680 | |||||||||||||
| Insertion Tube | TM-FSA-OLY34 | OD:Φ13×ID:Φ10.6×L:1680 | |||||||||||||
| Insertion Tube | TM-FSA-OLY35 | OD:Φ6.2×ID:Φ5.2×L:600 | |||||||||||||
| Insertion Tube | TM-FSA-OLY36 | OD:Φ6.0×ID:Φ5.0×L:600 | |||||||||||||
| Insertion Tube | TM-FSA-OLY37 | OD:Φ5.8×ID:Φ4.8×L:600 | |||||||||||||
| Insertion Tube | TM-FSA-OLY38 | OD:Φ5.2×ID:Φ4.2×L:600 | |||||||||||||
| Insertion Tube | TM-FSA-OLY39 | OD:Φ5.1×ID:Φ4.1×L:600 | |||||||||||||
| Insertion Tube | TM-FSA-OLY40 | OD:Φ4.6×ID:Φ3.6×L:600 | |||||||||||||
| Insertion Tube | TM-FSA-OLY41 | OD:Φ2.9×ID:Φ2.1×L:580 | |||||||||||||
| Common Insertion Tube specification for Fuji endoscope | |||||||||||||||
| Name | Model No | Specification(mm) | Mark | ||||||||||||
| Insertion Tube | TM-FSA-FJ01 | OD:Φ9.5×ID:Φ7.8×L:1060 | with end-fitting | ||||||||||||
| Insertion Tube | TM-FSA-FJ02 | OD:Φ9.3×ID:Φ7.6×L:1060 | with end-fitting | ||||||||||||
| Insertion Tube | TM-FSA-FJ03 | OD:Φ9.6×ID:Φ7.8×L:1090 | with end-fitting | ||||||||||||
| Insertion Tube | TM-FSA-FJ04 | OD:Φ9.9×ID:Φ8.2×L:1060 | with end-fitting | ||||||||||||
| Insertion Tube | TM-FSA-FJ05 | OD:Φ10.8×ID:Φ9.0×L:1070 | |||||||||||||
| Insertion Tube | TM-FSA-FJ06 | OD:Φ8.2×ID:Φ6.4×L:1090 | |||||||||||||
| Insertion Tube | TM-FSA-FJ07 | OD:Φ6.2×ID:Φ5.2×L:1090 | |||||||||||||
| Insertion Tube | TM-FSA-FJ08 | OD:Φ9.8×ID:Φ8.0×L:1070 | with end-fitting | ||||||||||||
| Insertion Tube | TM-FSA-FJ09 | OD:Φ12.0×ID:Φ9.7×L:1690 | with end-fitting | ||||||||||||
| Insertion Tube | TM-FSA-FJ10 | OD:Φ12.9×ID:Φ10.5×L:1690 | with end-fitting | ||||||||||||
| Insertion Tube | TM-FSA-FJ11 | OD:Φ5.35×ID:Φ4.4×L:560 | |||||||||||||
| Insertion Tube | TM-FSA-FJ12 | OD:Φ6.15×ID:Φ5.2×L:560 | |||||||||||||
| Insertion Tube | TM-FSA-FJ13 | OD:Φ11.5×ID:Φ9.2×L:1250 | |||||||||||||
| Insertion Tube | TM-FSA-FJ14 | OD:Φ9.3×ID:Φ7.6×L:1100 | with end-fitting | ||||||||||||
| Insertion Tube | TM-FSA-FJ15 | OD:Φ12.8×ID:Φ10.5×L:1690 | with end-fitting | ||||||||||||
| Insertion Tube | TM-FSA-FJ16 | OD:Φ12.9×ID:Φ10.5×L:1640 | with end-fitting | ||||||||||||
| Insertion Tube | TM-FSA-FJ17 | OD:Φ9.4×ID:Φ7.7×L:1090 | with end-fitting | ||||||||||||
| Insertion Tube | TM-FSA-FJ18 | OD:Φ12.9×ID:Φ10.5×L:1620 | with end-fitting | ||||||||||||
| Insertion Tube | TM-FSA-FJ19 | OD:Φ8.5×ID:Φ6.8×L:1090 | with end-fitting | ||||||||||||
| Common Insertion Tube specification for Pentax endoscope | |||||||||||||||
| Name | Model No | Specification（mm) | Mark | ||||||||||||
| Insertion Tube | TM-FSA-PTX01 | OD:Φ9.8×ID:Φ8.1×L:1050 | with end-fitting | ||||||||||||
| Insertion Tube | TM-FSA-PTX02 | OD:Φ5.4×ID:Φ4.4×L:1100 | |||||||||||||
| Insertion Tube | TM-FSA-PTX03 | OD:Φ8.0×ID:Φ6.3×L:1050 | |||||||||||||
| Insertion Tube | TM-FSA-PTX04 | OD:Φ9.0×ID:Φ7.3×L:1050 | with End-fitting | ||||||||||||
| Insertion Tube | TM-FSA-PTX05 | OD:Φ10.0×ID:Φ8.3×L:1050 | with end-fitting | ||||||||||||
| Insertion Tube | TM-FSA-PTX06 | OD:Φ12.8×ID:Φ10.4×L:1050 | |||||||||||||
| Insertion Tube | TM-FSA-PTX07 | OD:Φ11.6×ID:Φ9.3×L:1500 | |||||||||||||
| Insertion Tube | TM-FSA-PTX08 | OD:Φ9.8×ID:Φ8.1×L:1700 | |||||||||||||
| Insertion Tube | TM-FSA-PTX09 | OD:Φ11.6×ID:Φ9.3×L:1700 | |||||||||||||
| Insertion Tube | TM-FSA-PTX10 | OD:Φ5.4×ID:Φ4.4×L:600 | |||||||||||||
| Insertion Tube | TM-FSA-PTX11 | OD:Φ9.2×ID:Φ7.5×L:1050 | with End-fitting | ||||||||||||
| Insertion Tube | TM-FSA-PTX12 | OD:Φ13.2×ID:Φ10.7×L:1300 | with end-fitting | ||||||||||||
| Insertion Tube | TM-FSA-PTX13 | OD:Φ13.2×ID:Φ10.7×L:1500 | with End-fitting | ||||||||||||
| Insertion Tube | TM-FSA-PTX14 | OD:Φ13.2×ID:Φ10.7×L:1700 | with end-fitting | ||||||||||||
| Insertion Tube | TM-FSA-PTX15 | OD:Φ11.6×ID:Φ9.3×L:1250 | |||||||||||||
| Insertion Tube | TM-FSA-PTX16 | OD:Φ12.1×ID:Φ9.8×L:1250 | |||||||||||||
| Insertion Tube | TM-FSA-PTX17 | OD:Φ12.8×ID:Φ10.4×L:1250 | |||||||||||||
| Insertion Tube | TM-FSA-PTX18 | OD:Φ6.2×ID:Φ5.2×L:600 | |||||||||||||
| Insertion Tube | TM-FSA-PTX19 | OD:Φ6.0×ID:Φ5.0×L:600 | |||||||||||||
| Insertion Tube | TM-FSA-PTX20 | OD:Φ5.2×ID:Φ4.2×L:600 | |||||||||||||
| Insertion Tube | TM-FSA-PTX21 | OD:Φ4.0×ID:Φ3.0×L:590 | |||||||||||||
| Insertion Tube | TM-FSA-PTX22 | OD:Φ6.4×ID:Φ5.4×L:600 | |||||||||||||
| Common Insertion Tube specification for Aohua endoscope | |||||||||||||||
| Name | Model No | Specification(mm) | |||||||||||||
| Insertion Tube | TM-FSA-AH01 | OD:9.6Φ×ID:Φ8.0 ×L:1050 | |||||||||||||
| Insertion Tube | TM-FSA-AH02 | OD:Φ10.5×ID:Φ8.7×L:1050 | |||||||||||||
| Insertion Tube | TM-FSA-AH03 | OD:Φ12.8×ID:Φ10.3×L:1300 | |||||||||||||
| Insertion Tube | TM-FSA-AH04 | OD:Φ12.8×ID:Φ10.3×L:1650 | |||||||||||||
| Insertion Tube | TM-FSA-AH05 | OD:Φ11.8×ID:Φ9.4×L:1650 | |||||||||||||
| Insertion Tube | TM-FSA-AH06 | OD:Φ10.8×ID:Φ9×L:730 | |||||||||||||
| Insertion Tube | TM-FSA-AH07 | OD:Φ12.8×ID:Φ10.3×L:730 | |||||||||||||
| Insertion Tube | TM-FSA-AH08 | OD:Φ4.9×ID:Φ4.1×L:600 | |||||||||||||
| Insertion Tube | TM-FSA-AH09 | OD:Φ5.7×ID:Φ4.7×L:600 | |||||||||||||
| Insertion Tube | TM-FSA-AH10 | OD:Φ4.9×ID:Φ4.1×L:450 | |||||||||||||
| Insertion Tube | TM-FSA-AH11 | OD:Φ5.7×ID:Φ4.7×L:450 | |||||||||||||
| Insertion Tube | TM-FSA-AH12 | OD:Φ9.0×ID:Φ7.3×L:1050 | |||||||||||||
| Insertion Tube | TM-FSA-AH13 | OD:Φ12.8×ID:Φ10.3×L:1330 | |||||||||||||
| Insertion Tube | TM-FSA-AH14 | OD:Φ12.8×ID:Φ10.3×L:1680 | |||||||||||||
| Insertion Tube | TM-FSA-AH15 | OD:Φ4.0×ID:Φ3.0×L:600 | |||||||||||||
| Insertion Tube | TM-FSA-AH16 | OD:Φ5.2×ID:Φ4.3×L:600 | |||||||||||||
| Insertion Tube | TM-FSA-AH17 | OD:Φ5.2×ID:Φ4.3×L:450 | |||||||||||||
| Insertion Tube | TM-FSA-AH18 | OD:Φ5.8×ID:Φ4.9×L:600 | |||||||||||||
| Insertion Tube | TM-FSA-AH19 | OD:Φ3.5×ID:Φ2.7×L:450 | |||||||||||||
| Insertion Tube | TM-FSA-AH20 | OD:Φ3.5×ID:Φ2.7×L:615 | |||||||||||||
| Common Insertion Tube specification for SonoScape endoscope | |||||||||||||||
| Name | Model No | Specification（mm) | |||||||||||||
| Insertion Tube | TM-FSA-SS01 | OD:9.8Φ×ID:Φ8.0×L:1090 | |||||||||||||
| Insertion Tube | TM-FSA-SS02 | OD:Φ9.8×ID:Φ8.0×L:1050 | |||||||||||||
| Insertion Tube | TM-FSA-SS03 | OD:Φ12.6×ID:Φ10×L:1700 | |||||||||||||
| Insertion Tube | TM-FSA-SS04 | OD:Φ12.9×ID:Φ10.3×L:1700 | |||||||||||||
| Insertion Tube | TM-FSA-SS05 | OD:Φ12.6×ID:Φ10×L:1350 | |||||||||||||
| Insertion Tube | TM-FSA-SS06 | OD:Φ12.9×ID:Φ10.3×L:1350 | |||||||||||||
| Insertion Tube | TM-FSA-SS07 | OD:9.3Φ×ID:Φ7.6×L:1050 | |||||||||||||
