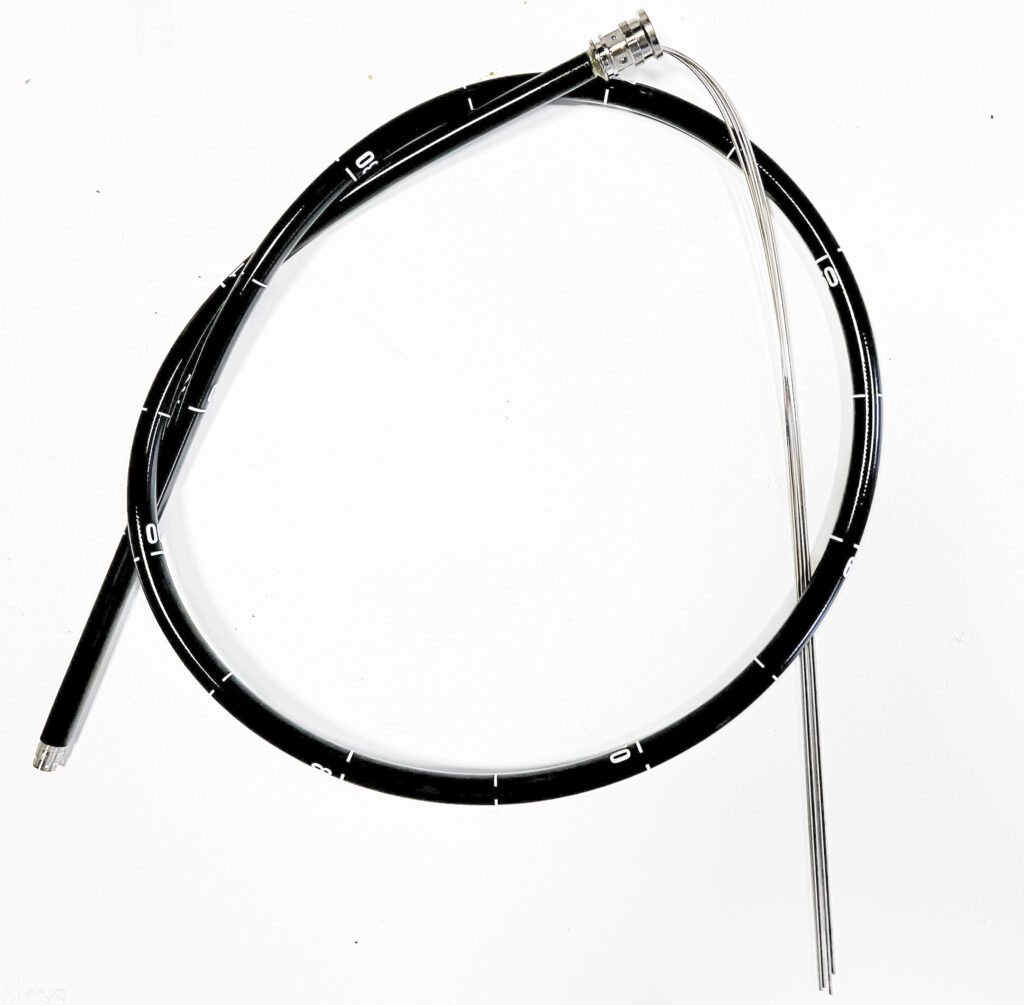

Insertion Tube assm
We can produce the Insertion Tube assy for SonoScape brand endoscope use, 430 series, 500 series and 550 series EG and EC endosopes, including Insertion tube, end-fitting, coil pipe assy.

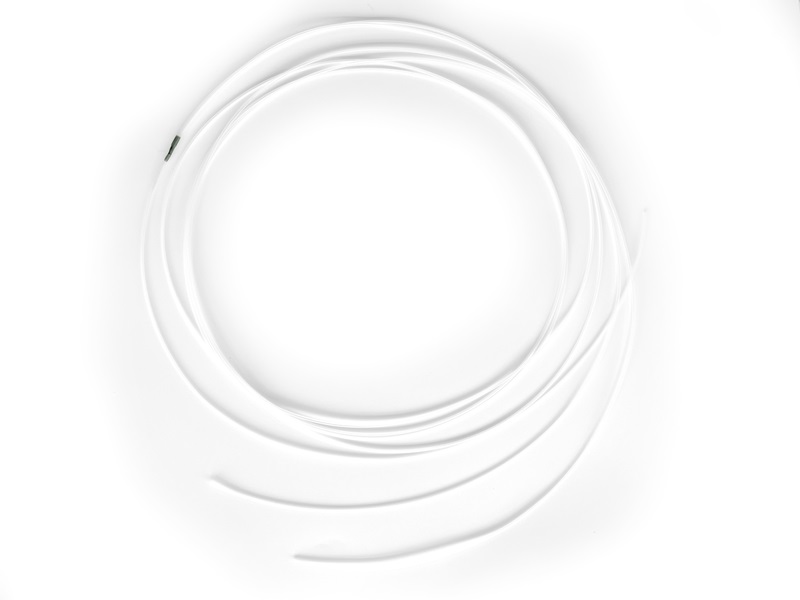

Air/water channel
We can supply the Air/water channel for Olympus, Fuji, Pentax, SonoScape, Aohua brand scopes. For olympus endoscope use is Y type, the specification as below: TM-AWC -OLY-1 Use for Gastroscope A:1.20mm x 1.60mm x 1800mm B:1.20mm x 1.60mm x 1800mm C:1.20mm x 1.60mm x 400mm GIF Y Type TM-AWC -OLY-2 Use for Colonoscope A:1.20mm x […]

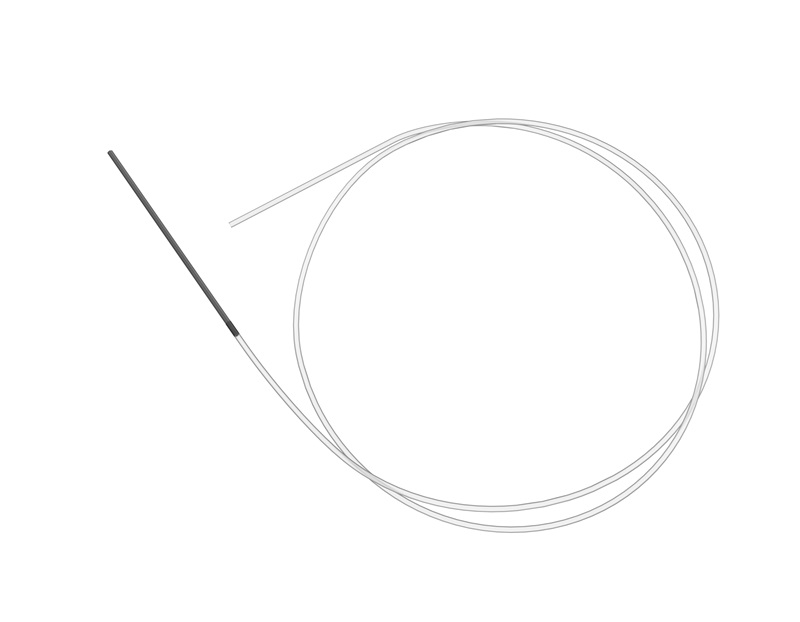

Biopsy Forceps channel
The Olympus endoscope Biopsy Forceps Channel that we supplied are white and Teflon material, with spring and without spring. Biopsy Forceps Channel Specification Item No Inner Φ（mm) Outer Φ(mm Spring Length（mm) Total Length(mm) Teflon Transparent with spring TM11151000 1.1 1.5 80 1000 TM12161000 1.2 1.6 85 1000 TM14181000 1.4 1.8 85 1000 TM16221000 1.6 2.2 […]

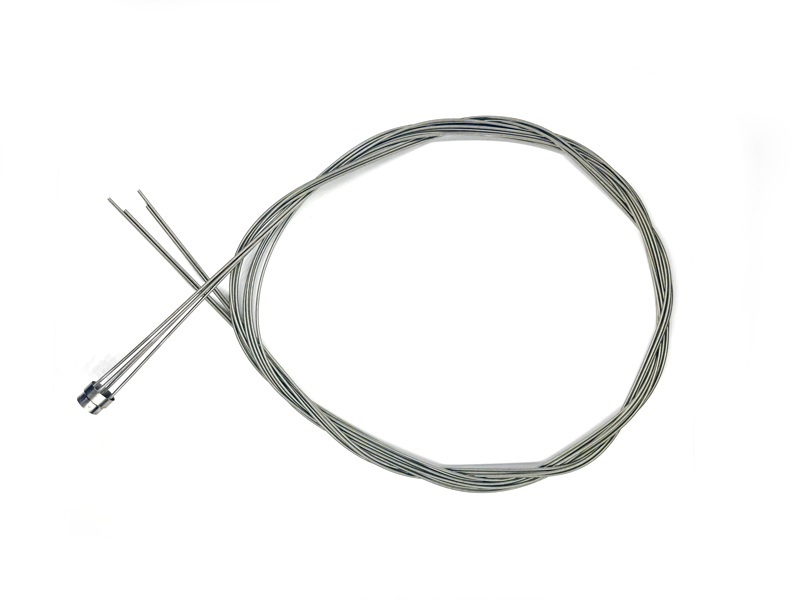

Coil pipe assm
We can supply the coil pipe assy for Olympus endoscope use, the customized is available for us. The below common model of coil pipe assy that we supply: GIF-160, GIF -Q150, GIF-Q180, GIF-XQ240/GIF-XQ260, GIF-Q260 GIF-H260, GIF-Q260J, GIF-V70, GIF-H260Z, GIF-H290, GIF-HQ290, GIF-H180, CF-Q260AL/I, CF-240L/I, CF-H260AL/I, CF-V70L, CF-H290I, CF-HQ290I, CF-Q160AL, CF-H170I, CF-Q150I, PCF-Q260JI, PCF-Q260AZI, PCF-Q260AL/I, PCF-160AL, CF-H290I, […]

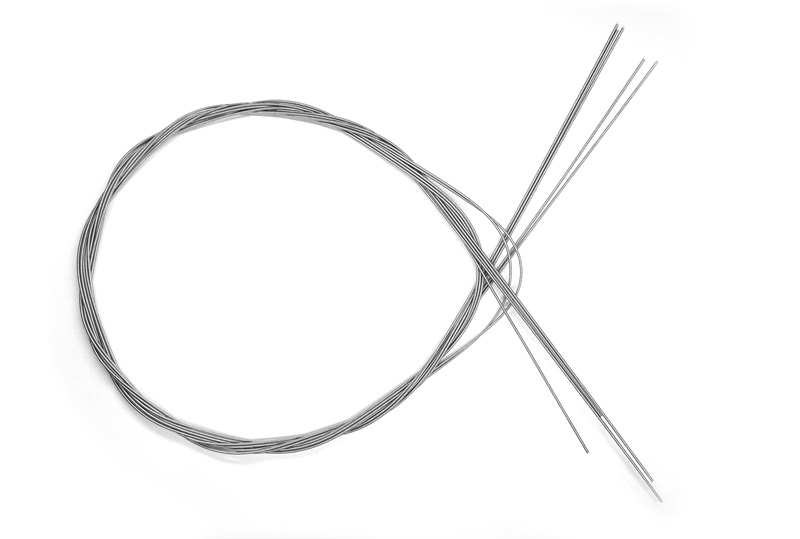

Coil pipe
We supply good quality Coil Pipe with different sizes. The common sizes that we recommend to use for Olympus scope as below: Gastroscope : ID 0.65-0.68mm, OD 1.2mm, length is 1400mm Colonoscope: ID 0.74mm, OD 1.5mm, length is 1850mm ID 0.75mm, OD 1.35mm, length is 1850mm (flat wire) Bronchoscope: ID 0.35mm, OD 0.65mm, length is […]
Insertion Tube
We design and develop the insertion tube with end-fitting for different series of Fuji endoscope, Pentax endoscope and SonoScape endoscope. You can choose with fitness or without fitness. All of diameter and length of Insertion tubes and customized sizes are available including special size for veterinary use. If you need the acid resistance insertion tube, […]
